Moteur électrique
Leroy Somer PLS

Demande de devis

Disponible sous 48h

Description du produit

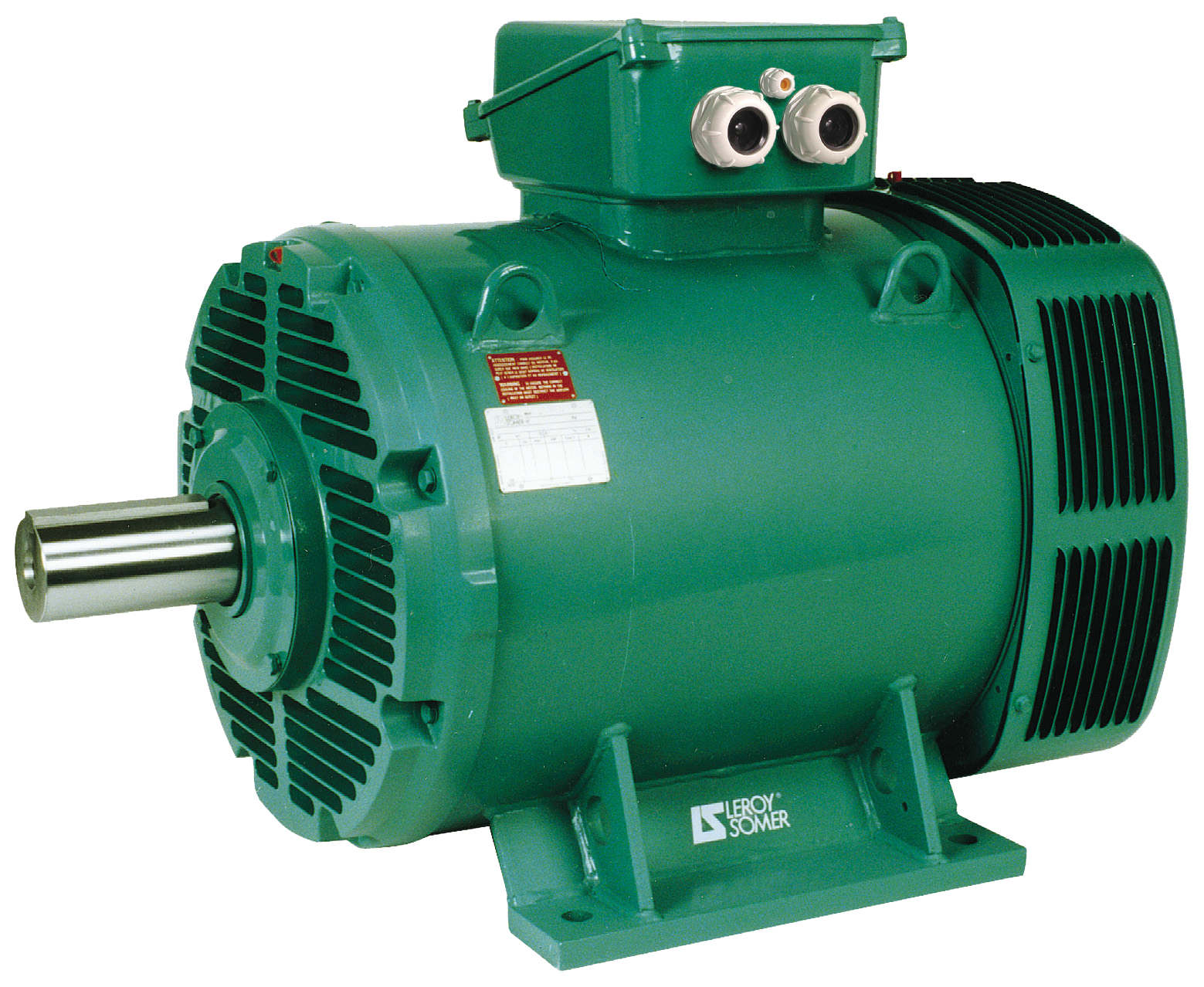

"Moteur électrique Leroy Somer PLS"

Partager



Présentation
• Moteurs asynchrones triphasés ouverts, série PLS, selon CEI 34, 38, 72, de puissance 11 kW à 900 kW, de hauteur d'axe 160 à 400 mm en 2, 4, 6 et 8 pôles ; 230/400 V ou 400 V, 50 Hz

Conception
Protection
• Version standard IP 23 assurant un excellent refroidissement du moteur par flux d'air interne

Réseau d'alimentation
• Standard selon CEI 38 soit : 230/400 V +10 % -10 % en 50 Hz
• Notre construction standard prévoit les alimentations suivantes :
- 220/380 V ou 380 V +5 % -5 % en 50 Hz
- 230/400 V ou 400 V +10 % -10 % en 50 Hz
- 240/415 V ou 415 V +5 % -5 % en 50 Hz
- 265/460 V ou 460 V +5 % -5 % en 60 Hz

Caractéristiques techniques
• Puissance max : 900 kW


Versions disponibles
6P PLS315M 132KW B3 400D (MA613402) / 6P PLS315M 132KW B3 230/400 (MA613401) / 6P PLS315SU 110KW V1 400D (MA611404) / 6P PLS315SU 110KW B3 230/400 (6P-PLS315SU-110KW-B3-230-400) / 6P PLS280MD 90KW V1 400D (MA690310) / 6P PLS280MD 90KW V1 230/400 (MA690309) / 6P PLS280MD 90KW B3 400D (MA690308) / 6P PLS280MD 90KW B3 230/400 (MA690307) / 6P PLS280SC 75KW B3 230/400 (MA675313) / 6P PLS250M 55KW V1 400D (MA655316) / 6P PLS250M 55KW V1 230/400 (MA655315) / 6P PLS250M 55KW B3 400D (MA655314) / 6P PLS250M 55KW B3 230/400 (MA655313) / 6P PLS250S 45KW V1 400D (MA645316) / 6P PLS250S 45KW V1 230/400 (MA645315) / 6P PLS225M 37KW B5 400D (MA637316) / 6P PLS225M 37KW B5 230/400 (MA637315) / 6P PLS225M 37KW B3 400D (MA637314) / 6P PLS200L 30KW B5 400D (MA630316) / 6P PLS200M 22KW B5 230/400 (MA622315) / 6P PLS200M 22KW B3 400D (MA622314) / 6P PLS200M 22KW B3 220/230D (MA622313) / 6P PLS180L 18,5KW B5 400D (MA618316) / 6P PLS180L 18,5KW B5 230/400 (MA618315) / 6P PLS180L 18,5KW B3 400D (MA618314) / 6P PLS180L 18,5KW B3 230/400 (MA618313) / 6P PLS180M 15KW B5 400D (MA615316) / 6P PLS180M 15KW B5 230/400 (MA615315) / 6P PLS160L 11KW B3 230/400 (MA611313) / 6P PLS160M 7,5KW B5 400D (MA675216) / 6P PLS160M 7,5KW B3 400D (MA675214) / 6P PLS160M 7,5KW B3 230/400 (MA675213) / 4P PLS250SP 75KW B35 F500 400D (MA4753L6) / 4P PLS250SP 75KW B35 F500 230/400 (MA4753L5) / 4P PLS200LP 45KW B35 F350 400D (MA4443L6) / 4P PLS200L 45KW B35 F350 230/400 (MA4443L5) / 4P PLS200M 37KW B35 F350 400D (MA4373L6) / 4P PLS200M 37KW B35 F350 230/400 (MA4373L5) / 4P PLS180L 30KW B35 F300 230/400 (MA4303L5) / 4P PLS180M 22KW B35 F300 400D (MA4223L6) / 4P PLS180M 22KW B35 F300 230/400 (MA4223L5) / 4P PLS160L 15KW B35 F300 400D (MA4153L6) / 4P PLS160L 15KW B35 F300 230/400 (MA4153L5) / 4P PLS160M 11KW B35 F300 400D (MA4113L6) / 4P PLS 315L 250KW B35 400D (4P-PLS-315L-250KW-B35-400D) / 4P PLS315L 250KW B3 400D (MA425408) / 4P PLS315M 200KW B35 400D (MA420456) / 4P PLS315M 200KW V1 230/400 (MA420403) / 4P PLS315M 200KW B3 400D (MA420402) / 4P PLS315M 200KW B3 230/400 (MA420401) / 4P PLS315S 160KW B35 400D (MA000238) / 4P PLS280MD 132KW B35 230/400 (MA413457) / 4P PLS280MD 132KW V1 230/400 (MA413409) / 4P PLS280MD 132KW B3 400D (MA413408) / 4P PLS280MD 132KW B3 230/400 (MA413407) / 4P PLS280SC 110KW B35 400D (MA000236) / 4P PLS280SC 110KW V1 400D (MA411416) / 4P PLS280SC 110KW V1 230/400 (MA411415) / 4P PLS280SC 110KW B3 230/400 (MA411413) / 4P PLS250MP 90KW B35 400D (MA4903J6) / 4P PLS250MP 90KW V1 400D (MA490316) / 4P PLS250MP 90KW V1 230/400 (MA490315) / 4P PLS250MP 90KW B3 400D (MA490314) / 4P PLS250MP 90KW B3 230/400 (MA490313) / 4P PLS250SP 75KW B35 400D (MA4753J6) / 4P PLS250SP 75KW B35 230/400 (MA4753J5) / 4P PLS250SP 75KW V1 400D (MA475316) / 4P PLS250SP 75KW V1 230/400 (MA475315) / 4P PLS250SP 75KW B3 400D (MA475314) / 4P PLS250SP 75KW B3 230/400 (MA475313) / 4P PLS225MR 55KW B35 400D (MA4553J6) / 4P PLS225MR 55KW B35 230/400 (MA4553J5) / 4P PLS225MR 55KW B5 400D (MA455316) / 4P PLS225MR 55KW B5 230/400 (MA455315) / 4P PLS225MR 55KW B3 400D (MA455314) / 4P PLS200LP 45KW B5 400D (MA445316) / 4P PLS200LP 45KW B5 230/400 (MA445315) / 4P PLS200LP 45KW B3 400D (MA445314) / 4P PLS200LP 45KW B3 230/400 (MA445313) / 4P PLS200M 37KW B35 400D (MA4373J6) / 4P PLS200M 37KW B5 400D (MA437316) / 4P PLS200M 37KW B5 230/400 (MA437315) / 4P PLS200M 37KW B3 400D (MA437314) / 4P PLS200M 37KW B3 230/400 (MA437313) / 4P PLS180L 30KW B35 400D (MA4303J6) / 4P PLS180L 30KW B35 230/400 (MA4303J5) / 4P PLS180L 30KW B5 400D (MA430316) / 4P PLS180L 30KW B5 230/400 (MA430315) / 4P PLS180L 30KW B3 400D (MA430314) / 4P PLS180M 22KW B35 400D (MA4223J6) / 4P PLS180M 22KW B35 230/400 (MA4223J5) / 4P PLS180M 22KW B5 400D (MA422316) / 4P PLS180M 22KW B5 230/400 (MA422315) / 4P PLS180M 22KW B3 400D (MA422314) / 4P PLS160L 18,5KW B35 400D (MA4183J6) / 4P PLS160L 18,5KW B5 400D (MA418316) / 4P PLS160L 18,5KW B5 230/400 (MA418315) / 4P PLS160L 15KW B5 400D (MA415316) / 4P PLS160L 15KW B5 230/400 (MA415315) / 4P PLS160L 15KW B3 400D (MA415314) / 4P PLS160L 15KW B3 230/400 (MA415313) / 4P PLS160M 11KW B35 400D (MA4113J6) / 4P PLS160M 11KW B5 400D (MA411316) / 4P PLS160M 11KW B5 230/400 (MA411315) / 4P PLS160M 11KW B3 400D (MA411314) / 4P PLS160M 11KW B3 230/400 (MA411313) / 2P PLS225MR 75KW F400 B35 400D (MA2753BA) / 2P PLS225MR 75KW F400 B35 230/400 (MA2753AJ) / 2P PLS200LP 55KW F350 B35 400D (MA2553BA) / 2P PLS200LP 55KW F350 B35 230/400 (MA2553AJ) / 2P PLS200M 45KW F350 B35 400D (MA2453BA) / 2P PLS180L 37KW F300 B35 400D (MA2373BA) / 2P PLS180L 37KW F300 B35 230/400 (MA2373AJ) / 2P PLS180M 30KW F300 B35 400D (MA2303BA) / 2P PLS180M 30KW F300 B35 230/400 (MA2303AJ) / 2P PLS315LD 315KW B3 400D (MA231503) / 2P PLS315L 250KW B3 400D (MA225402) / 2P PLS315M 200KW B35 400D (MA000231) / 2P PLS315M 200KW V1 230/400 (MA220403) / 2P PLS315M 200KW B3 400D (MA220402) / 2P PLS315S 160KW B35 400D (MA216480) / 2P PLS315S 160KW V1 400D (MA216410) / 2P PLS315S 160KW B3 400D (MA216408) / 2P PLS280MC 132KW V1 230/400 (MA213409) / 2P PLS280MC 132KW B3 400D (MA213408) / 2P PLS250MP 110KW V1 400D (MA211410) / 2P PLS250MP 110KW V1 230/400 (MA211409) / 2P PLS250MP 110KW B3 230/400 (MA211407) / 2P PLS250SP 90KW B35 400D (MA000229) / 2P PLS250SP 90KW V1 230/400 (MA290309) / 2P PLS250SP 90KW B3 400D (MA290308) / 2P PLS225MR 75KW B35 400D (MA2753B0) / 2P PLS225MR 75KW B35 230/400 (MA2753A9) / 2P PLS225MR 75KW B5 400D (MA275310) / 2P PLS225MR 75KW B3 400D (MA275308) / 2P PLS225MR 75KW B3 230/400 (MA275307) / 2P PLS200LP 55KW B35 230/400 (MA2553A9) / 2P PLS200LP 55KW B5 400D (MA255310) / 2P PLS200LP 55KW B5 230/400 (MA255309) / 2P PLS200LP 55KW B3 400D (MA255308) / 2P PLS200LP 55KW B3 230/400 (MA255307) / 2P PLS200M 45KW B35 400D (MA2453B0) / 2P PLS200M 45KW B5 400D (MA245310) / 2P PLS200M 45KW B5 230/400 (MA245309) / 2P PLS200M 45KW B3 400D (MA245308) / 2P PLS180L 37KW B5 230/400 (MA237309) / 2P PLS180L 37KW B3 400D (MA237308) / 2P PLS180L 37KW B3 230/400 (MA237307) / 2P PLS180M 30KW B35 400D (MA2303B0) / 2P PLS180M 30KW B35 230/400 (MA2303A9) / 2P PLS180M 30KW B5 400D (MA230310) / 2P PLS180M 30KW B5 230/400 (MA230309) / 2P PLS160L 22KW B3 230/400 (MA222307) / 2P PLS160L 18,5KW B35 400D (MA2183B0) / 2P PLS160L 18,5KW B35 230/400 (MA2183A9) / 2P PLS160L 18,5KW B5 400D (MA218310) / 2P PLS160L 18,5KW B5 230/400 (MA218309) / 2P PLS160L 18,5KW B3 400D (MA218308) / 2P PLS160L 18,5KW B3 230/400 (MA218307) / 2P PLS160M 15KW B35 400D (MA2153B0) / 2P PLS160M 15KW B5 400D (MA215310) / 2P PLS160M 15KW B3 400D (MA215308) / 2P PLS160M 11KW B35 400D (MA2113B0) / 2P PLS160M 11KW B35 230/400 (MA2113A9) / 2P PLS160M 11KW B5 230/400 (MA211309) / 6P PLS315MU 132KW V1 400D (MA613404) / 6P PLS315MU 132KW V1 230/400 (MA613403) / 6P PLS315SU 110KW V1 230/400 (MA611403) / 6P PLS315SU 110KW B3 400D (6P-PLS315SU-110KW-B3-400D) / 6P PLS280SC 75KW V1 400D (MA675316) / 6P PLS280SC 75KW V1 230/400 (MA675315) / 6P PLS280SC 75KW B3 400D (MA675314) / 6P PLS250S 45KW B3 400D (MA645314) / 6P PLS250S 45KW B3 230/400 (MA645313) / 6P PLS225M 37KW B3 230/400 (MA637313) / 6P PLS200L 30KW B5 230/400 (MA630315) / 6P PLS200L 30KW B3 400D (MA630314) / 6P PLS200L 30KW B3 230/400 (MA630313) / 6P PLS200M 22KW B5 400D (MA622316) / 6P PLS180M 15KW B3 400D (MA615314) / 6P PLS180M 15KW B3 230/400 (MA615313) / 6P PLS160L 11KW B5 400D (MA611316) / 6P PLS160L 11KW B5 230/400 (MA611315) / 6P PLS160L 11KW B3 400D (MA611314) / 6P PLS160M 7,5KW B5 230/400 (MA675215) / 4P PLS225M 55KW B35 F400 400D (MA4553L6) / 4P PLS225M 55KW B35 F400 230/400 (MA4553L5) / 4P PLS180L 30KW B35 F300 400D (MA4303L6) / 4P PLS160L 18,5KW B35 F300 400D (MA4183L6) / 4P PLS160L 18,5KW B35 F300 230/400 (MA4183L5) / 4P PLS160M 11KW B35 F300 230/400 (MA4113L5) / 4P PLS160M 11KW B5 F300 400D (MA4113K6) / 4P PLS160M 11KW B5 F300 230/400 (MA4113K5) / 4P PLS315LD 280KW B3 400D (MA428509) / 4P PLS315M 200KW V1 400D (MA420404) / 4P PLS315S 160KW V1 400D (MA416404) / 4P PLS315S 160KW V1 230/400 (MA416403) / 4P PLS315S 160KW B3 400D (MA416402) / 4P PLS315S 160KW B3 230/400 (MA416401) / 4P PLS280MD 132KW B35 400D (MA413456) / 4P PLS280MD 132KW V1 400D (MA413410) / 4P PLS280SC 110KW B3 400D (MA411414) / 4P PLS225MR 55KW B3 230/400 (MA455313) / 4P PLS200LP 45KW B35 400D (MA4443J6) / 4P PLS200L 45KW B35 230/400 (MA4443J5) / 4P PLS200M 37KW B35 230/400 (MA4373J5) / 4P PLS180L 30KW B3 230/400 (MA430313) / 4P PLS180M 22KW B3 230/400 (MA422313) / 4P PLS160L 18,5KW B35 230/400 (MA4183J5) / 4P PLS160L 18,5KW B3 400D (MA418314) / 4P PLS160L 18,5KW B3 230/400 (MA418313) / 4P PLS160L 15KW B35 400D (MA4153J6) / 4P PLS160L 15KW B35 230/400 (MA4153J5) / 4P PLS160M 11KW B35 230/400 (MA4113J5) / 2P PLS200M 45KW F350 B35 230/400 (MA2453AJ) / 2P PLS315LD 280KW B3 400D (MA228503) / 2P PLS315M 200KW V1 400D (MA220404) / 2P PLS315M 200KW B3 230/400 (MA220401) / 2P PLS315S 160KW V1 230/400 (MA216409) / 2P PLS315S 160KW B3 230/400 (MA216407) / 2P PLS280MC 132KW B35 400D (MA213480) / 2P PLS280MC 132KW V1 400D (MA213410) / 2P PLS280MC 132KW B3 230/400 (MA213407) / 2P PLS250MP 110KW B35 400D (MA211480) / 2P PLS250MP 110KW B3 400D (MA211408) / 2P PLS250SP 90KW V1 400D (MA290310) / 2P PLS250SP 90KW B3 230/400 (MA290307) / 2P PLS225MR 75KW B5 230/400 (MA275309) / 2P PLS200LP 55KW B35 400D (MA2553B0) / 2P PLS200M 45KW B35 230/400 (MA2453A9) / 2P PLS200M 45KW B3 230/400 (MA245307) / 2P PLS180L 37KW B35 400D (MA2373B0) / 2P PLS180L 37KW B35 230/400 (MA2373A9) / 2P PLS180L 37KW B5 400D (MA237310) / 2P PLS180M 30KW B3 400D (MA230308) / 2P PLS180M 30KW B3 230/400 (MA230307) / 2P PLS160L 22KW B35 400D (MA2223B0) / 2P PLS160L 22KW B35 230/400 (MA2223A9) / 2P PLS160L 22KW B5 400D (MA222310) / 2P PLS160L 22KW B5 230/400 (MA222309) / 2P PLS160L 22KW B3 400D (MA222308) / 2P PLS160M 15KW B35 230/400 (MA2153A9) / 2P PLS160M 15KW B5 230/400 (MA215309) / 2P PLS160M 15KW B3 230/400 (MA215307) / 2P PLS160M 11KW B5 400D (MA211310) / 2P PLS160M 11KW B3 400D (MA211308) / 2P PLS160L 18,5KW B3 230/400 3000 MIN-1 (2P-PLS160L-18,5KW-B3-230-400-3000-MIN-1) / 2P PLS160L 18,5KW B3 400D 3000 MIN-1 (MA218308) / 2P PLS160L 18,5KW B35 230/400 3000 MIN-1 (2P-PLS160L-18,5KW-B35-230-400-3000-MIN-1) / 2P PLS160L 18,5KW B35 400D 3000 MIN-1 (2P-PLS160L-18,5KW-B35-400D-3000-MIN-1) / 2P PLS160L 18,5KW B5 230/400 3000 MIN-1 (2P-PLS160L-18,5KW-B5-230-400-3000-MIN-1) / 2P PLS160L 18,5KW B5 400D 3000 MIN-1 (MA218310) / 2P PLS160L 22KW B3 230/400 3000 MIN-1 (2P-PLS160L-22KW-B3-230-400-3000-MIN-1) / 2P PLS160L 22KW B3 400D 3000 MIN-1 (MA222308) / 2P PLS160L 22KW B35 230/400 3000 MIN-1 (2P-PLS160L-22KW-B35-230-400-3000-MIN-1) / 2P PLS160L 22KW B35 400D 3000 MIN-1 (MA2223B0) / 2P PLS160L 22KW B5 230/400 3000 MIN-1 (2P-PLS160L-22KW-B5-230-400-3000-MIN-1) / 2P PLS160L 22KW B5 400D 3000 MIN-1 (MA222310) / 2P PLS160M 11KW B3 400D 3000 MIN-1 (MA211308) / 2P PLS160M 11KW B35 230/400 3000 MIN-1 (2P-PLS160M-11KW-B35-230-400-3000-MIN-1) / 2P PLS160M 11KW B35 400D 3000 MIN-1 (MA2113B0) / 2P PLS160M 11KW B5 230/400 3000 MIN-1 (2P-PLS160M-11KW-B5-230-400-3000-MIN-1) / 2P PLS160M 11KW B5 400D 3000 MIN-1 (MA211310) / 2P PLS160M 15KW B3 230/400 3000 MIN-1 (2P-PLS160M-15KW-B3-230-400-3000-MIN-1) / 2P PLS160M 15KW B3 400D 3000 MIN-1 (MA215308) / 2P PLS160M 15KW B35 230/400 3000 MIN-1 (2P-PLS160M-15KW-B35-230-400-3000-MIN-1) / 2P PLS160M 15KW B35 400D 3000 MIN-1 (MA2153B0) / 2P PLS160M 15KW B5 230/400 3000 MIN-1 (2P-PLS160M-15KW-B5-230-400-3000-MIN-1) / 2P PLS160M 15KW B5 400D 3000 MIN-1 (MA215310) / 2P PLS180L 37KW B3 230/400 3000 MIN-1 (2P-PLS180L-37KW-B3-230-400-3000-MIN-1) / 2P PLS180L 37KW B3 400D 3000 MIN-1 (MA237308) / 2P PLS180L 37KW B35 230/400 3000 MIN-1 (2P-PLS180L-37KW-B35-230-400-3000-MIN-1) / 2P PLS180L 37KW B35 400D 3000 MIN-1 (MA2373B0) / 2P PLS180L 37KW B5 230/400 3000 MIN-1 (2P-PLS180L-37KW-B5-230-400-3000-MIN-1) / 2P PLS180L 37KW B5 400D 3000 MIN-1 (MA237310) / 2P PLS180L 37KW F300 B35 230/400 3000 MIN-1 (2P-PLS180L-37KW-F300-B35-230-400-3000-MIN-1) / 2P PLS180L 37KW F300 B35 400D 3000 MIN-1 (2P-PLS180L-37KW-F300-B35-400D-3000-MIN-1) / 2P PLS180M 30KW B3 230/400 3000 MIN-1 (2P-PLS180M-30KW-B3-230-400-3000-MIN-1) / 2P PLS180M 30KW B3 400D 3000 MIN-1 (MA230308) / 2P PLS180M 30KW B35 230/400 3000 MIN-1 (2P-PLS180M-30KW-B35-230-400-3000-MIN-1) / 2P PLS180M 30KW B35 400D 3000 MIN-1 (MA2303B0) / 2P PLS180M 30KW B5 230/400 3000 MIN-1 (2P-PLS180M-30KW-B5-230-400-3000-MIN-1) / 2P PLS180M 30KW B5 400D 3000 MIN-1 (MA230310) / 2P PLS180M 30KW F300 B35 230/400 3000 MIN-1 (2P-PLS180M-30KW-F300-B35-230-400-3000-MIN-1) / 2P PLS180M 30KW F300 B35 400D 3000 MIN-1 (2P-PLS180M-30KW-F300-B35-400D-3000-MIN-1) / 2P PLS200LP 55KW B3 230/400 3000 MIN-1 (2P-PLS200LP-55KW-B3-230-400-3000-MIN-1) / 2P PLS200LP 55KW B3 400D 3000 MIN-1 (MA255308) / 2P PLS200LP 55KW B35 230/400 3000 MIN-1 (2P-PLS200LP-55KW-B35-230-400-3000-MIN-1) / 2P PLS200LP 55KW B35 400D 3000 MIN-1 (MA2553B0) / 2P PLS200LP 55KW B5 230/400 3000 MIN-1 (2P-PLS200LP-55KW-B5-230-400-3000-MIN-1) / 2P PLS200LP 55KW B5 400D 3000 MIN-1 (MA255310) / 2P PLS200LP 55KW F350 B35 230/400 3000 MIN-1 (2P-PLS200LP-55KW-F350-B35-230-400-3000-MIN-1) / 2P PLS200LP 55KW F350 B35 400D 3000 MIN-1 (MA2553BA) / 2P PLS200M 45KW B3 230/400 3000 MIN-1 (2P-PLS200M-45KW-B3-230-400-3000-MIN-1) / 2P PLS200M 45KW B3 400D 3000 MIN-1 (MA245308) / 2P PLS200M 45KW B35 230/400 3000 MIN-1 (2P-PLS200M-45KW-B35-230-400-3000-MIN-1) / 2P PLS200M 45KW B35 400D 3000 MIN-1 (MA2453B0) / 2P PLS200M 45KW B5 230/400 3000 MIN-1 (2P-PLS200M-45KW-B5-230-400-3000-MIN-1) / 2P PLS200M 45KW B5 400D 3000 MIN-1 (MA245310) / 2P PLS200M 45KW F350 B35 230/400 3000 MIN-1 (2P-PLS200M-45KW-F350-B35-230-400-3000-MIN-1) / 2P PLS200M 45KW F350 B35 400D 3000 MIN-1 (2P-PLS200M-45KW-F350-B35-400D-3000-MIN-1)
