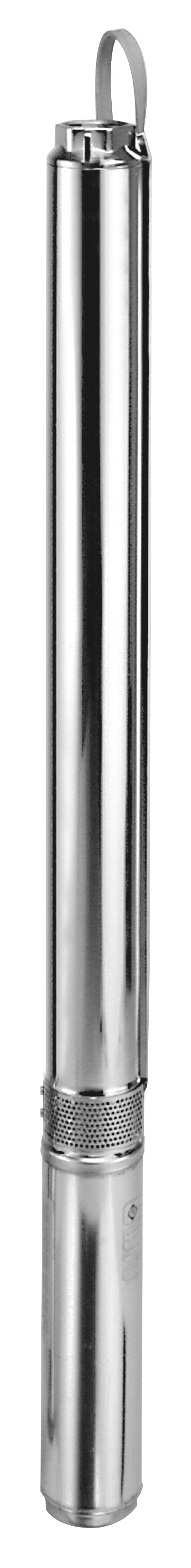

Pompe de forage immergée
Nocchi SCM 4 PLUS

Télécharger
+ Voir les autres plaquettes
Pompe immergée, forage / puits Pompe forage immergée 4' (100 mm) Nocchi (Pentair)

Pompe de forage immergée
Nocchi SCM 4 PLUS

Demande de devis

Disponible sous 48h

Description du produit
"Pompe de forage immergée Nocchi SCM 4 PLUS"

Partager



Présentation
• Les pompes immergées SCM 4 PLUS sont constituées d’un hydraulique directement couplée à un moteur immergée
• Particulièrement appropriées pour l’élévation d’eau à partir de puits ou de forages profonds

Applications
• Alimentation en eau sous pression à partir d’un forage supérieur 4”
• Aspersion, fontaines et jets d’eau (install. horizontale)
• Usage industriels, agricoles et domestiques
• Pompes pour systèmes géothermique

Limites d’utilisation
• Liquides clairs, propres, non agressifs et non explosifs, sans particules solides
• Plage de température maxi de l’eau : 30°C
• Nombre maxi de démarrages horaires : 20
• Protection thermique au soin de l’utilisateur
• Variation de tension max admissible de + 6% a -10%

Moteur
• Moteur : Franklin immerge 4”
• Stator imprégné sous vide et noyé dans une résine
• Paliers a butée et bagues de refroidissement
• Câble d’alimentation 1,5 m de câble plat 4 x 1,5 mm débrochable
• Refroidissement par eau non polluante
• Accouplement conforme à la Norme NEMA
• Indice de protection : IP 68
• Classe d’isolation : B
• Vitesse de rotation : 2850 trs/mn
• Joint tournant spéciale avec déflecteur anti-sable
• Diaphragme de compensation de pression
• Bobinage monophasé 230V - 50 Hz livre sans condensateur
• Fonctionnement continu en immersion
• Coffret électrique de commande sur demande

Caractéristiques techniques
• Puissance max nominale : 5,5 kW
• Immersion sous le niveau de l’eau : max 20 m
• Indice de protection : IP 68
• Classe d’isolation : B
• Hauteur max (HMT) : 300 m
• Débit max : 15 m3/h

Versions disponibles
SCM 4 PLUS 40/57 M (N3181000) / SCM 4 PLUS 40/57 T (N3181010) / SCM 4 PLUS 40/90 M (N3181020) / SCM 4 PLUS 40/90 T (N3181030) / SCM 4 PLUS 40/120 M (N3181040) / SCM 4 PLUS 40/120 T (N3181050) / SCM 4 PLUS 40/185 M (N3181060) / SCM 4 PLUS 40/185 T (N3181070) / SCM 4 PLUS 40/240 M (N3181080) / SCM 4 PLUS 40/240 T (N3181090) / SCM 4 PLUS 55/50 M (N3182000) / SCM 4 PLUS 55/50 T (N3182010) / SCM 4 PLUS 55/80 M (N3182020) / SCM 4 PLUS 55/80 T (N3182030) / SCM 4 PLUS 55/105 M (N3182040) / SCM 4 PLUS 55/105 T (N3182050) / SCM 4 PLUS 55/160 M (N3182060) / SCM 4 PLUS 55/160 T (N3182070) / SCM 4 PLUS 55/200 M (N3182080) / SCM 4 PLUS 55/200 T (N3182090) / SCM 4 PLUS 55/300 T (N3182100) / SCM 4 PLUS 75/40 M (N3183000) / SCM 4 PLUS 75/40 T (N3183010) / SCM 4 PLUS 75/56 M (N3183020) / SCM 4 PLUS 75/56 T (N3183030) / SCM 4 PLUS 75/75 M (N3183040) / SCM 4 PLUS 75/75 T (N3183050) / SCM 4 PLUS 75/110 M (N3183060) / SCM 4 PLUS 75/110 T (N3183070) / SCM 4 PLUS 75/140 M (N3183080) / SCM 4 PLUS 75/140 T (N3183090) / SCM 4 PLUS 75/210 T (N3183100) / SCM 4 PLUS 115/30 M (N3184000) / SCM 4 PLUS 115/30 T (N3184010) / SCM 4 PLUS 115/50 M (N3184020) / SCM 4 PLUS 115/50 T (N3184030) / SCM 4 PLUS 115/65 M (N3184040) / SCM 4 PLUS 115/65 T (N3184050) / SCM 4 PLUS 115/95 M (N3184060) / SCM 4 PLUS 115/95 T (N3184070) / SCM 4 PLUS 115/122 M (N3184080) / SCM 4 PLUS 115/122 T (N3184090) / SCM 4 PLUS 115/185 T (N3184100) / SCM 4 PLUS 115/245 T (N3184110) / SCM 4 PLUS 150/42 M (N3185000) / SCM 4 PLUS 150/42 T (N3185010) / SCM 4 PLUS 150/64 M (N3185020) / SCM 4 PLUS 150/64 T (N3185030) / SCM 4 PLUS 150/84 M (N3185040) / SCM 4 PLUS 150/84 T (N3185050) / SCM 4 PLUS 150/120 T (N3185060) / SCM 4 PLUS 150/170 T (N3185070) / SCM 4 PLUS 150/200 T (N3185080) / SCM 4 PLUS 150/300 T (N3185090) / SCM 4 PLUS 250/53 M (N3186000) / SCM 4 PLUS 250/53 T (N3186010) / SCM 4 PLUS 250/78 T (N3186020) / SCM 4 PLUS 250/100 T (N3186030) / SCM 4 PLUS 250/127 T (N3186040) / SCM 4 PLUS 250/185 T (N3186050) / SCM 4 PLUS 115/95 T 1.1KW (TRI) (N3186160)
